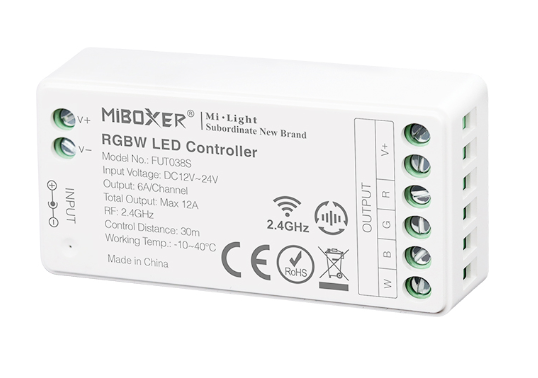

LED RGBW controller (12 / 24 V)

The RGBW controller allows you to control RGBW LED strips, which, in addition to the three primary colors (red, green, blue), have an integrated white channel. This allows you to create both colored lighting scenes and pure white light with dimmable intensity. The controller is designed for systems with 12 V or 24 V DC.

The device is controlled via PWM (pulse width modulation), enabling smooth color changes and even dimming without visible flicker. It uses a common anode and is compatible with standard RGBW LED strips.

The controller can optionally be operated via a compatible remote control, a Wi-Fi module, or a DMX signal. The necessary accessories are not included.

Technical data

• Suitable for RGBW LED strips with 12V or 24V operating voltage
• Four channels: red, green, blue and white – common anode
• Maximum current load per channel depends on the model (e.g. 4×4 A or 4×6 A)
• Light control via PWM technology
• Expandable with wireless remote control, Wi-Fi bridge or DMX interface
